Jet cap

Flow-optimized to dissipate stale air in the roof area

[Translate to Englisch:]
Do you have questions? Your contact

Product description

Material: galvanised sheet steel, stainless sheet steel (surface III C), aluminium

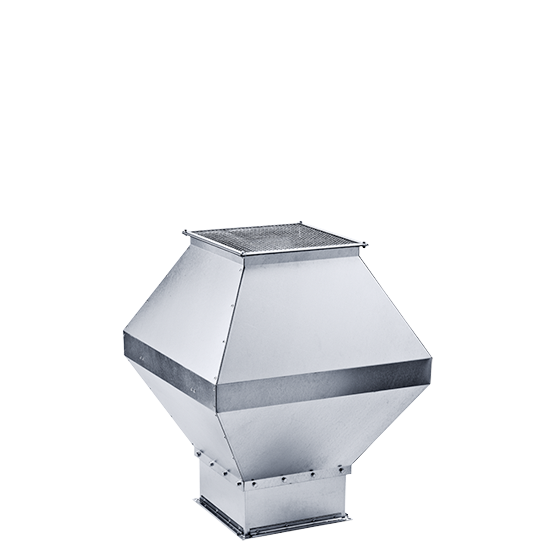

Design details: With the flow-optimised jet cap, the air is guided laterally via parallel shafts. Inside there is a V-shaped channel which reaches down to the lowest point of the inner sides of the housing. The new DFh-E-Eco design combines aesthetics with reduced flow noise.

The base is fitted with a connection frame for secure fastening to the roof attachment.

Design: The jet cap essentially consists of a housing in the form of two connected and opposing frustums, the base and the rainwater collector.

Standard square and rectangular jet caps are manufactured fully assembled up to a connection dimensions of
1,500 x 1,500 mm.
