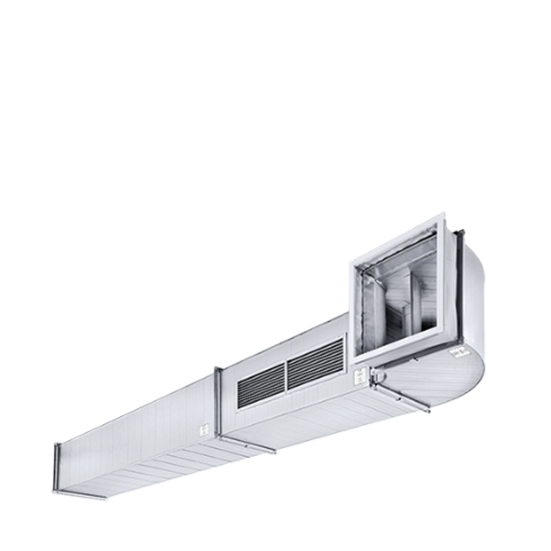

Smoke extraction duct
XDuct®

a tested system as per
DIN EN 12101-7:2011-08

[Translate to Englisch:]
Do you have questions? Your contact

Product description

Material: galvanised sheet steel

Design:  The smoke extraction ducting XDuct® is a complete system with ducting and fittings made of folded, galvanised sheet steel and complies with the requirements of the Technical Building Regulations (MVV TB) serial number 10.5, status 2017/1 of 31.8.2017, correction 11/12/2017

The tested system achieves a lower pressure loss with less weight.  The ducts and fittings are made of 1 mm galvanised sheet steel with additional reinforcements and a 30 mm lightweight section frame.

Smoke extraction ducting up to a cross-section of (W x H) 1,250 x 1,000 mm is used.

Directives and standards:

  • Directive: Technical Building Regulations (MVV TB) serial number 10.5, status 2017/1
    of 31.8.2017, correction 11/12/2017
  • Harmonised, standard smoke duct sections: DIN EN 12 101-7:2011-08
  • Test standard: DIN EN 1366-9
  • Classification standard: DIN EN 13 501-4

XDuct® ducting and fittings bear the CE marking.
